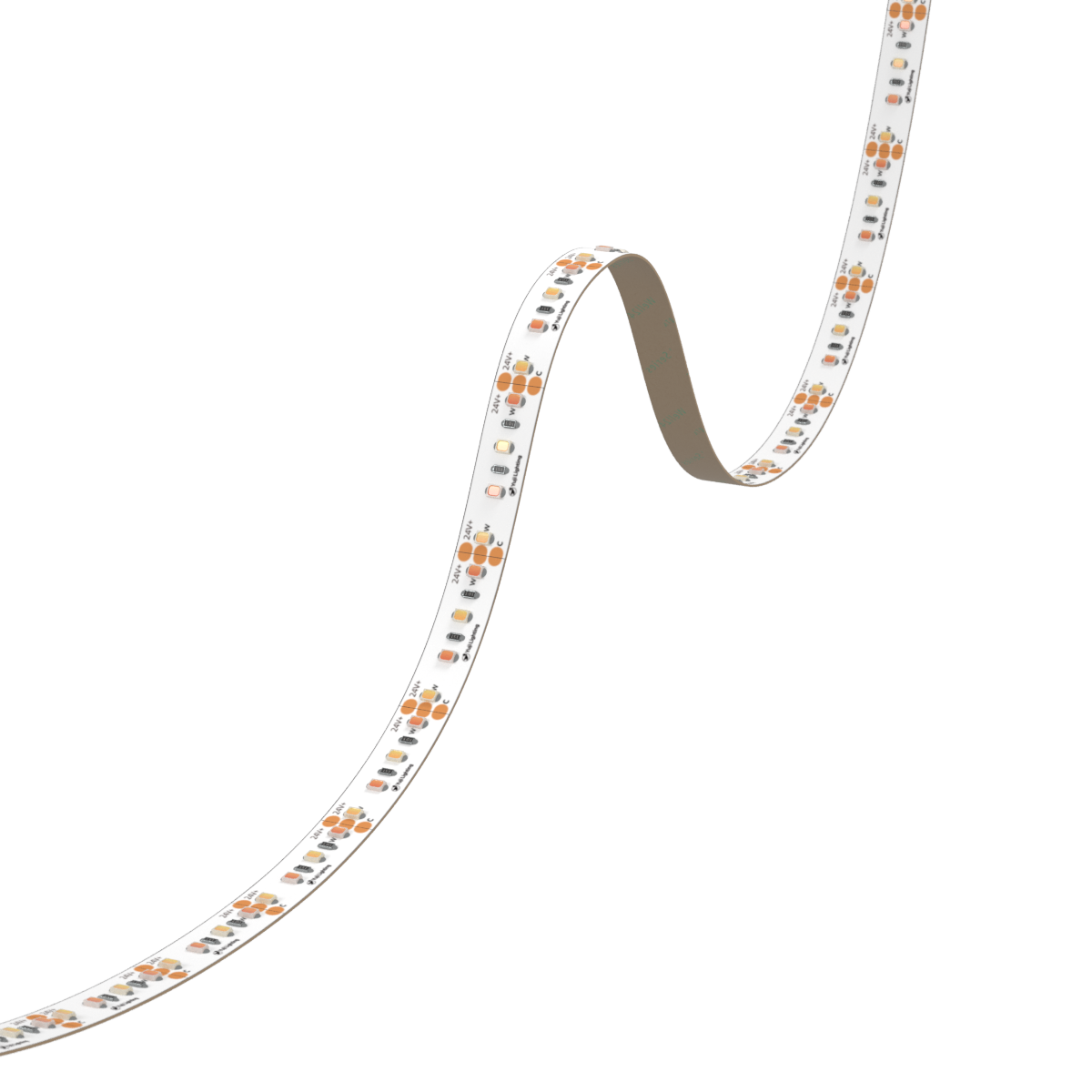

Yuji Tunable White SunWave Technology – 2700K-6500K Flexible LED Strip

Yuji Tunable White SunWave Technology – 2700K-6500K Flexible LED Strip

Ordering Code: SKU YJ-WL-HRB-DTF-2835-24V-3012

Specification

Mode:

deep-sleep mode

pre-sleep mode

Relax mode

LED-StripChannelDriver

Characteristics

Voltage, V

24

Power W/ft | W/m

5.03 | 16.5

Lumen output, lm/ft | lm/m

412 | 1350

Cut length inch | mm

1.26 | 32

Width, inch |mm

.24 | 6

Max run length ft | m

16.4 | 5

IP protection rating

20

Dimming

Compatible with PWM, DALI, TRIAC, or 0/1-10V dimmers

UL Certified

Yes

Closet Rated

No

JA8 / TITLE24 Compliant

Yes

Color accuracy

CCT, K

2700

6500

CCT, K

3200

5700

Tolerance CCT, Duv

+-75K

+0.002

Color rendering

CRI 3000K | 1250K

95

—

R9

99

TM-30; Rf | Rg

98

100

Consistency

Color

Simple Bin 27A

Simple Bin 32A

Simple Bin 56A

Simple Bin 65A

Performance

natural dimming curve

Wellbeing lighting

M/p Ratio

No Value
