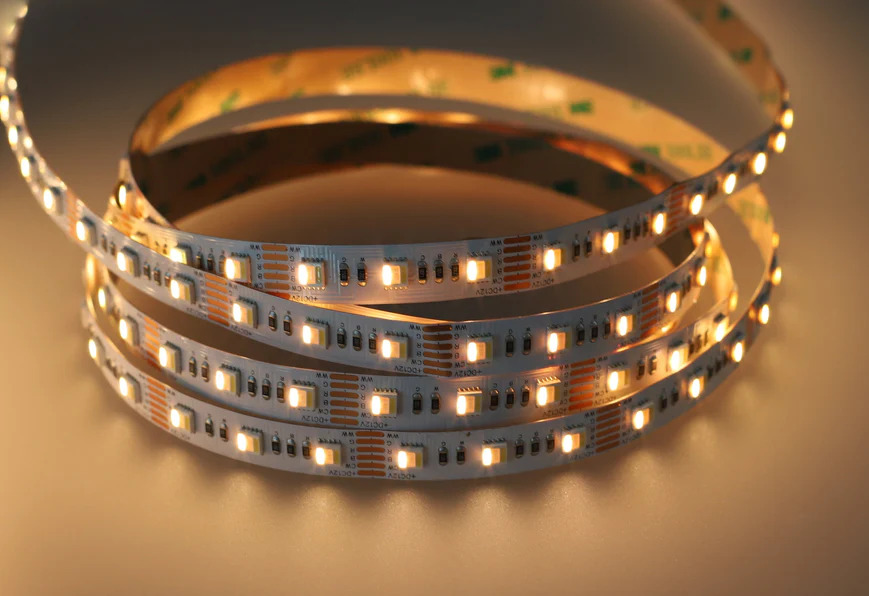

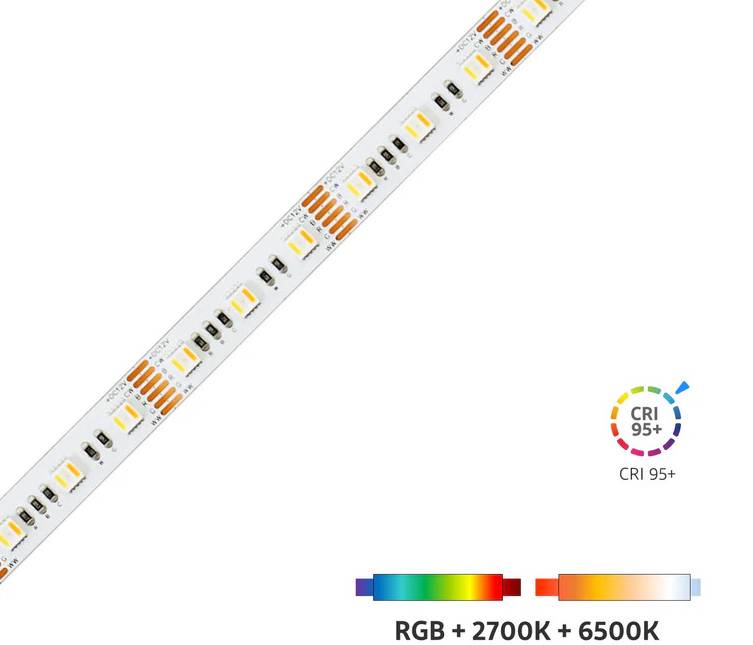

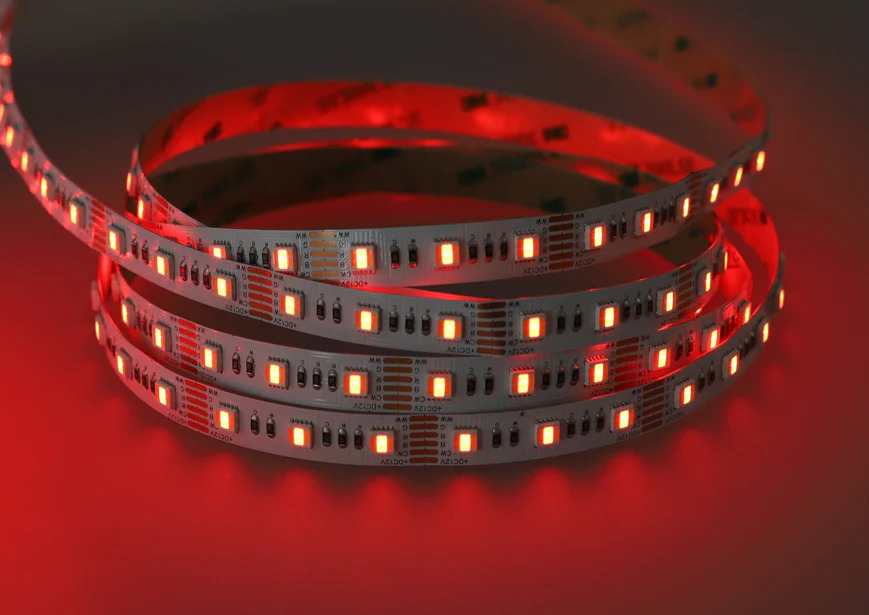

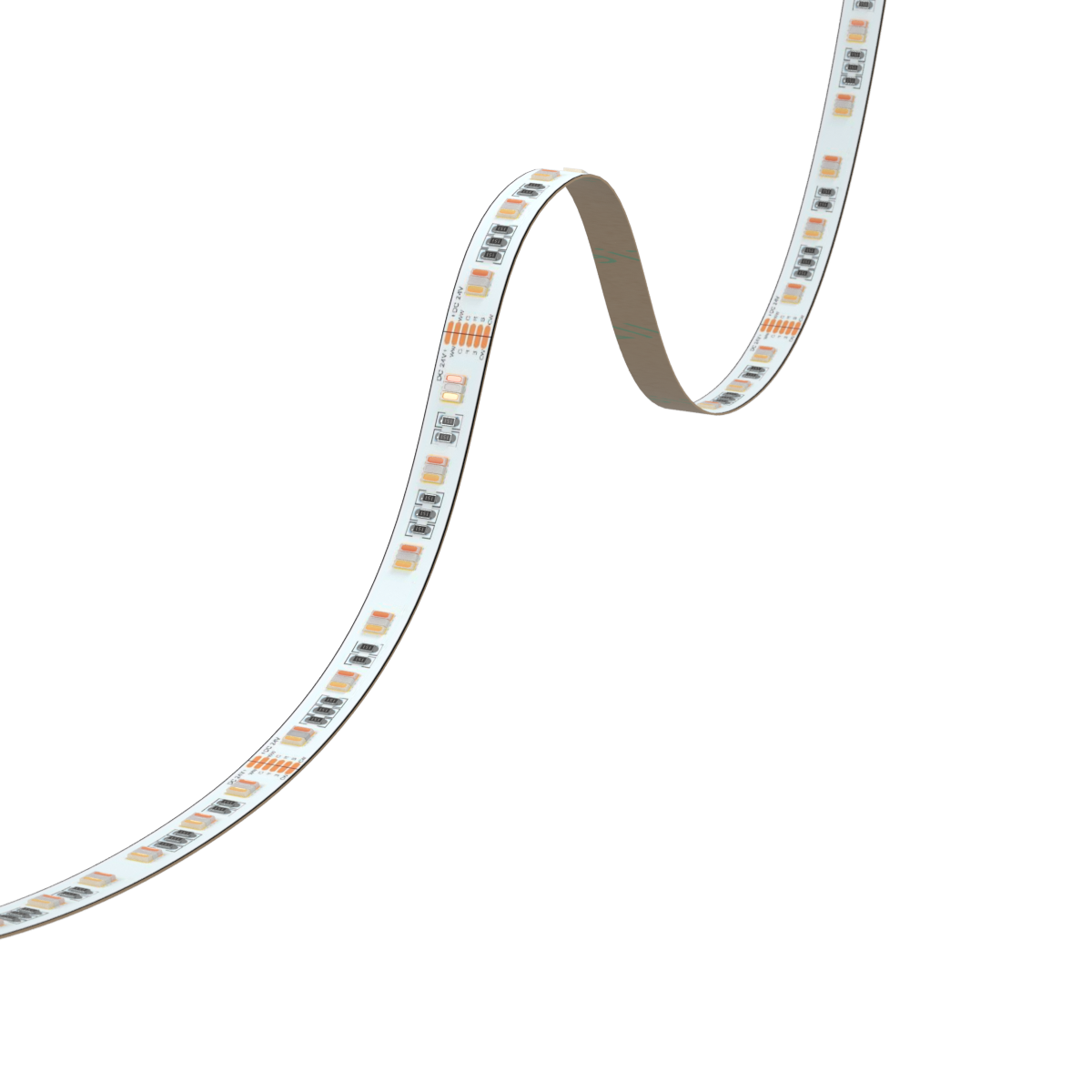

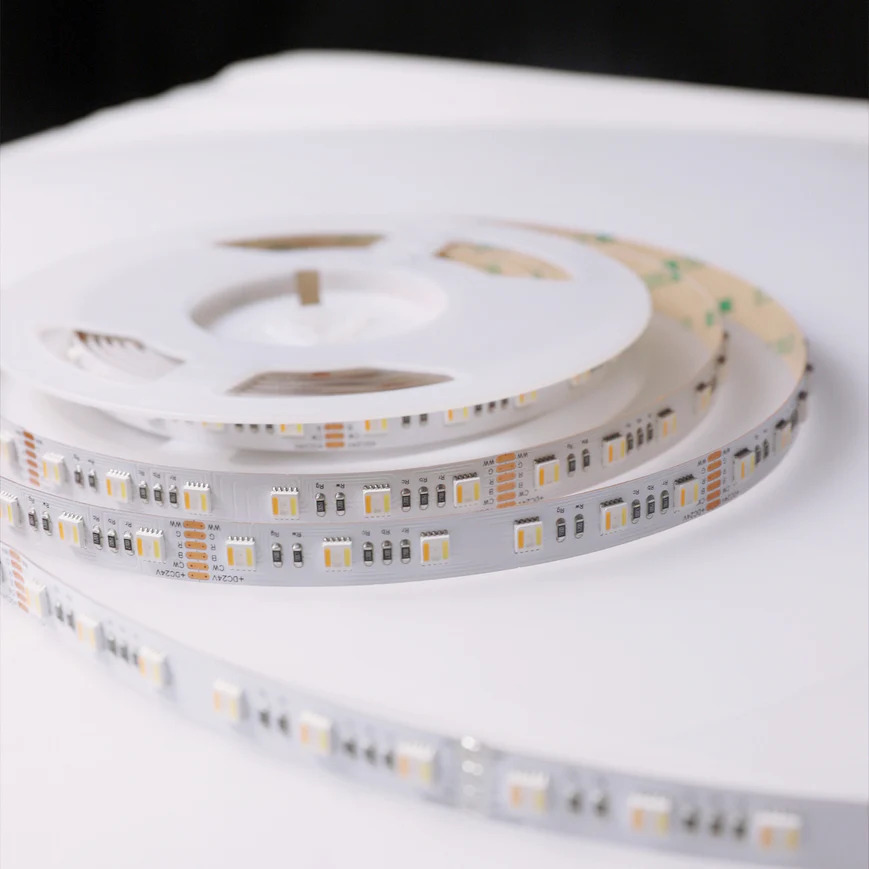

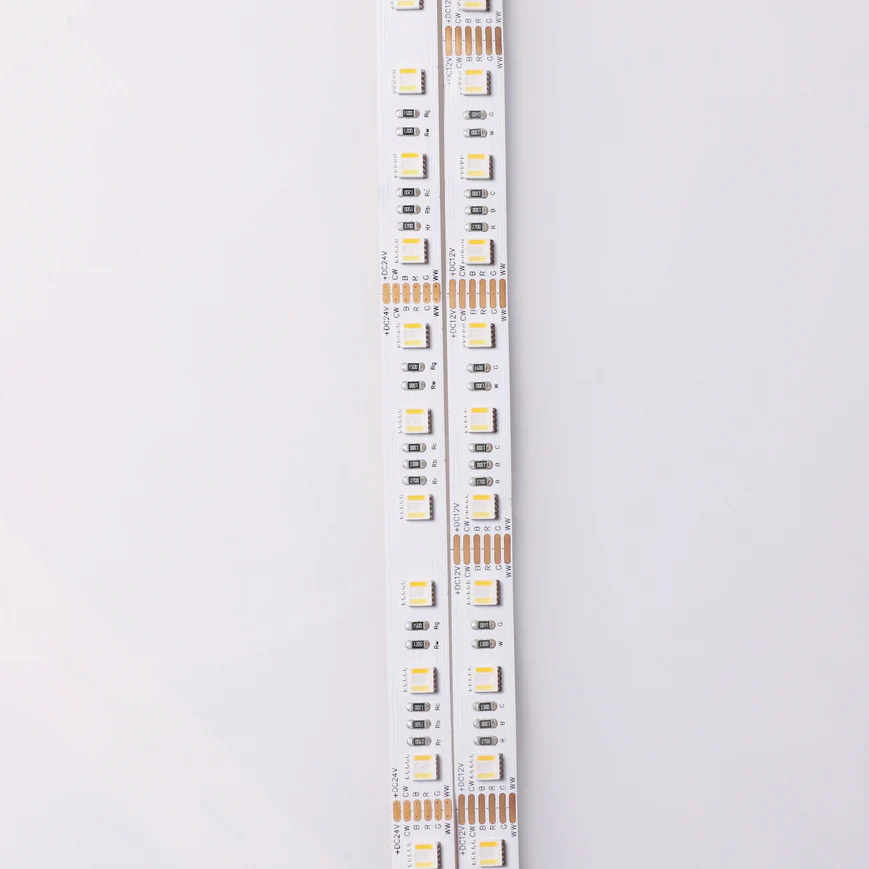

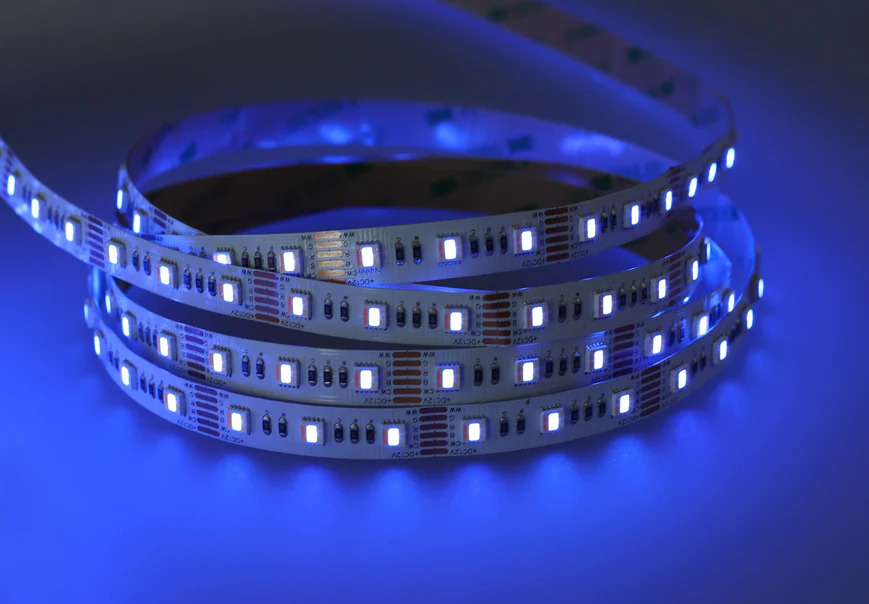

Yuji CRI-MAX RGBWW Full Gamut Technology – 2700K 6500K Flexible LED Strip

Yuji CRI-MAX RGBWW Full Gamut Technology – 2700K 6500K Flexible LED Strip

Ordering Code: SKU

TM-30-18 Test Report 24VTM-30-18 Test Report 12VSpecification

Mode:

deep-sleep mode

pre-sleep mode

Relax mode

LED-StripChannelDriver

Characteristics

Voltage, V

1224

Power W/ft | W/m

8.78 | 28.8

Lumen output, lm/ft | lm/m

528 | 1730

Cut length inch | mm

1.9685 | 503.937 | 100

Width, inch |mm

.4724 | 12

Max run length ft | m

16.4 | 5

IP protection rating

20

Dimming

Compatible with PWM, 0/1-10V dimmers

UL Certified

Yes

Closet Rated

No

JA8 / TITLE24 Compliant

Yes

Color accuracy

CCT, K

2700

6500

Tolerance CCT, Duv

-

-

Color rendering

CRI 3000K | 1250K

95

—

R9

99

TM-30; Rf | Rg

92

100

Consistency

Color

Simple Bin 27M

Simple Bin 32M

Performance

natural dimming curve

Wellbeing lighting

M/p Ratio

No Value

Specifications
