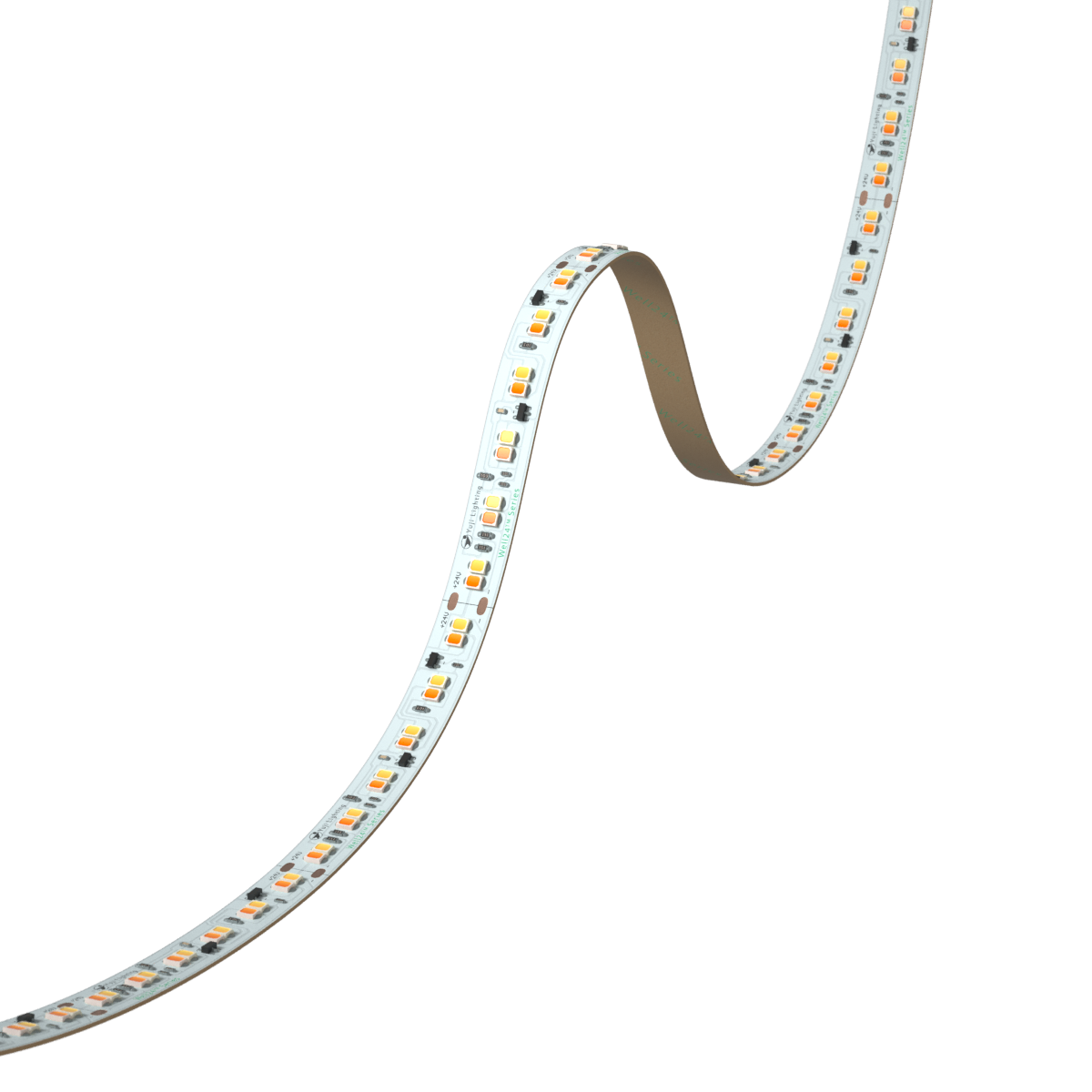

Yuji Dim-to-FlameWarm Technology - 1250K-3000K LED Flexible Strip

Yuji Dim-to-FlameWarm Technology - 1250K-3000K LED Flexible Strip

Ordering Code: SKU YJ-WL-HRB-DTF-2835-24V-3012

TM-30-18 Test ReportSpecification

Mode:

deep-sleep mode

pre-sleep mode

Relax mode

LED-StripChannelDriver

Characteristics

Voltage, V

24

Power W/ft | W/m

5.1 | 16.8

Lumen output, lm/m

1200

Cut length inch | mm

2.811 | 71.43

Width, inch |mm

0.4 | 10

Max run length ft | m

16.4 | 5

IP protection rating

20

Dimming

Compatible with DALI, TRIAC, or 0/1-10V dimmers

UL Certified

Yes

Closet Rated

No

JA8 / TITLE24 Compliant

Yes

Color accuracy

CCT, K

1250

3000

Tolerance CCT, Duv

+-75K

+0.002

Color rendering

CRI 3000K | 1250K

98

—

R9

>90

TM-30; Rf | Rg

98

100

Consistency

Color

simple bin 30A

simple bin 12A

Performance

natural dimming curve

Wellbeing lighting

M/p Ratio

1250K: 0.099

3000K: 0.571

Specifications
